FEA · CFD · Multiphysics
FEA / CFD simulation
We evaluate the structural, thermal and fluid performance of components and systems. Simulation helps identify risks, compare scenarios and support design decisions before investing in prototypes or production.
−30 to −50%
Estimated reduction in physical iterations on projects suited to virtual validation.
−20%+
Potential reduction in the time needed to reach a technical decision.
FEA + CFD
Structural, thermal, fluid and coupled-effects analysis as each case requires.
Service scope
Capabilities, applications and deliverables
We define the technical workflow based on the geometry, the functional requirements and the level of validation the project needs.
Analysis
Simulation areas
- Static or dynamic structural: stresses, deformation, contact and fatigue within a defined scope.

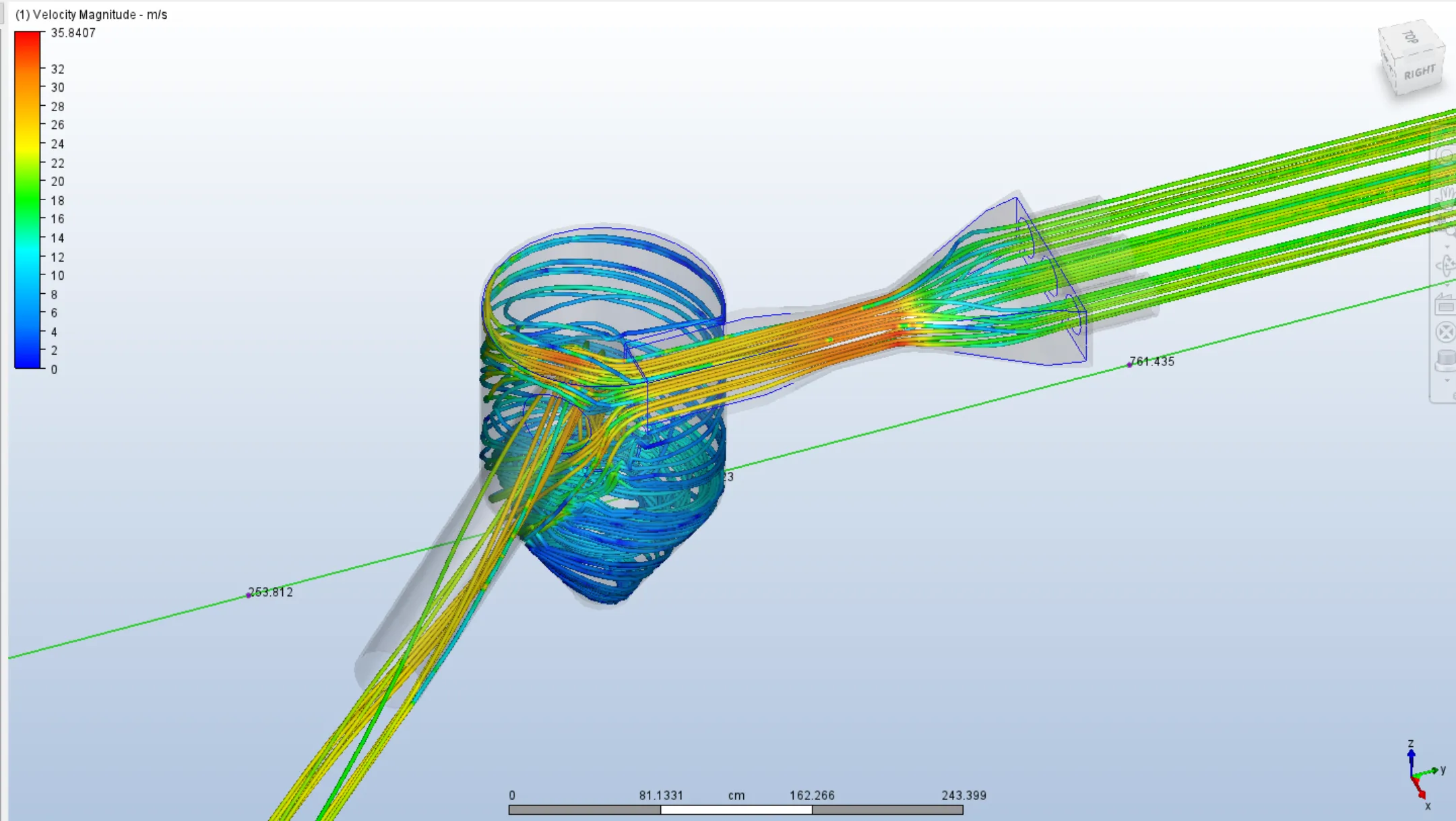

- CFD: velocity profiles, pressure, pressure drop, heat transfer and aerodynamics.
- Thermo-mechanical, fluid-structure and other multiphysics studies.
- Geometry optimization to reduce mass or improve performance within agreed constraints.
Deliverables
Technical process and results
- Geometry preparation or simplification and definition of a meshing strategy.
- Assignment of materials, boundary conditions and representative load cases.
- Contour plots, sections, curves and KPIs focused on answering the project's questions.
- Technical report with assumptions, results, limitations and redesign recommendations.
Applications
Where it adds value
The final setup is tailored to the industry, the part's use and the project's acceptance criteria.
Structural
Strength and deformation
Validate components, brackets and assemblies under operating loads.
CFD
Flow and heat transfer
Analyze ventilation, ducts, pressure drop, cooling and thermal performance.
Optimization
Less mass, better performance
Compare alternatives and identify opportunities before manufacturing.
Process
A controlled workflow from start to finish
Each stage produces verifiable information to reduce rework and keep technical decisions traceable.
- 01
Engineering question
We define what needs to be verified, against which criteria and for which decision.
- 02
Model and conditions
We prepare geometry, materials, contacts, loads and boundary conditions.
- 03
Solve and review
We run the study, check convergence and review sensitivity.
- 04
Conclusions
We document the results and propose redesign or physical validation actions.
Related services
Integrate the full workflow
Combine this service with other AxonID capabilities to move from capture or validation through to manufacturing and dimensional inspection.
Do you have files, drawings or a reference part?
Share the scope, quantity, material and expected timeline. We will review the information and propose the right technical workflow.
